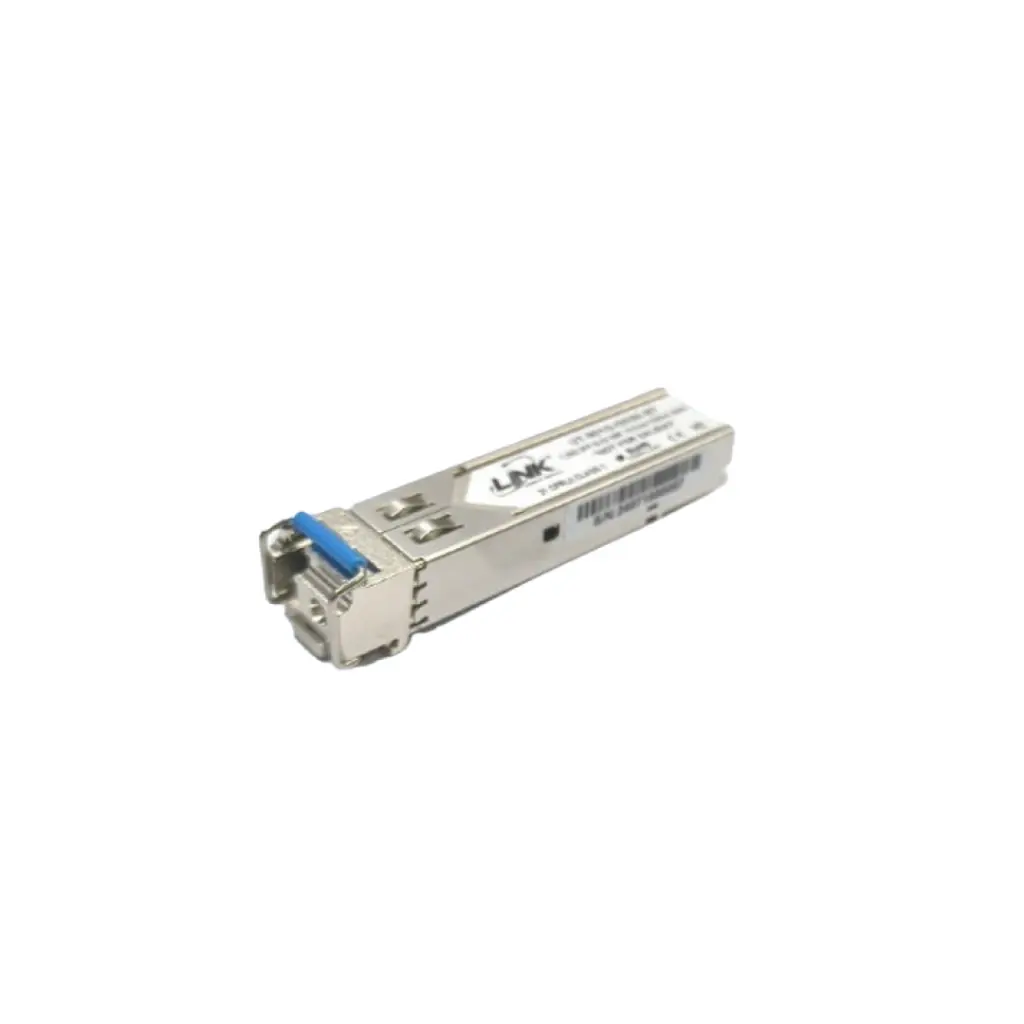

LINK SFP BI-DI Transceiver TX1310/RX1550, for HP รุ่น UT-901G-HP20-BT35
3 sold in last 24 hours
• Multi Data Rate : ftom 125M to 1.25Gbps, NRZ
• Single +3.3V Power Supply
• RoHS Compliant and Lead-free
• AC/AC Differential Electrical Interface
• Single power supply 3.3V
• Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
• Compliant with SFF-8472 Digital Diagnostic
• Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps
• Compliance with ANSI specifications for Fiber Channel applications at 1.06 Gbs
• Eye Safety : Designed to meet Laser Class 1 comply with EN60825-1
• WDM (Wavelength Division Multiplexing)
| แบรนด์ | LINK |
ut-901g-xx_datasheet.pdf
Download
