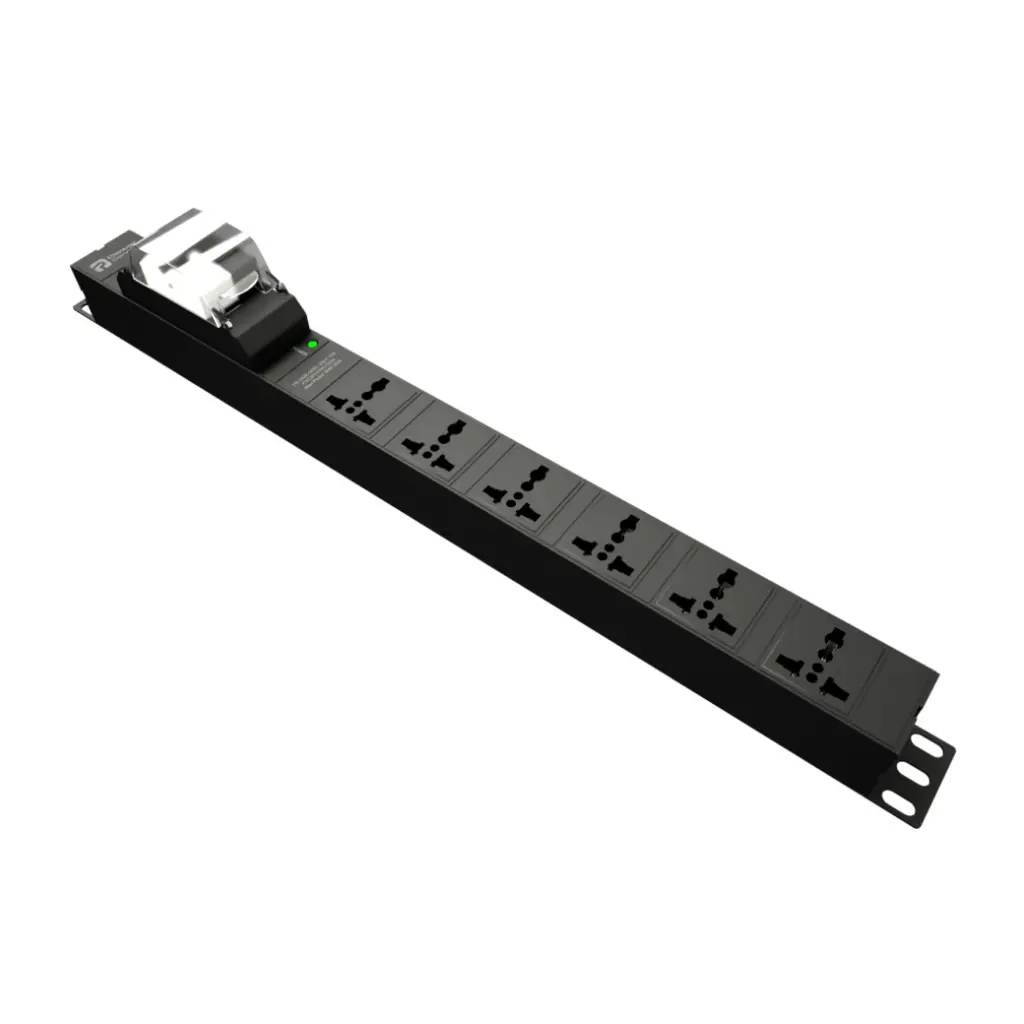

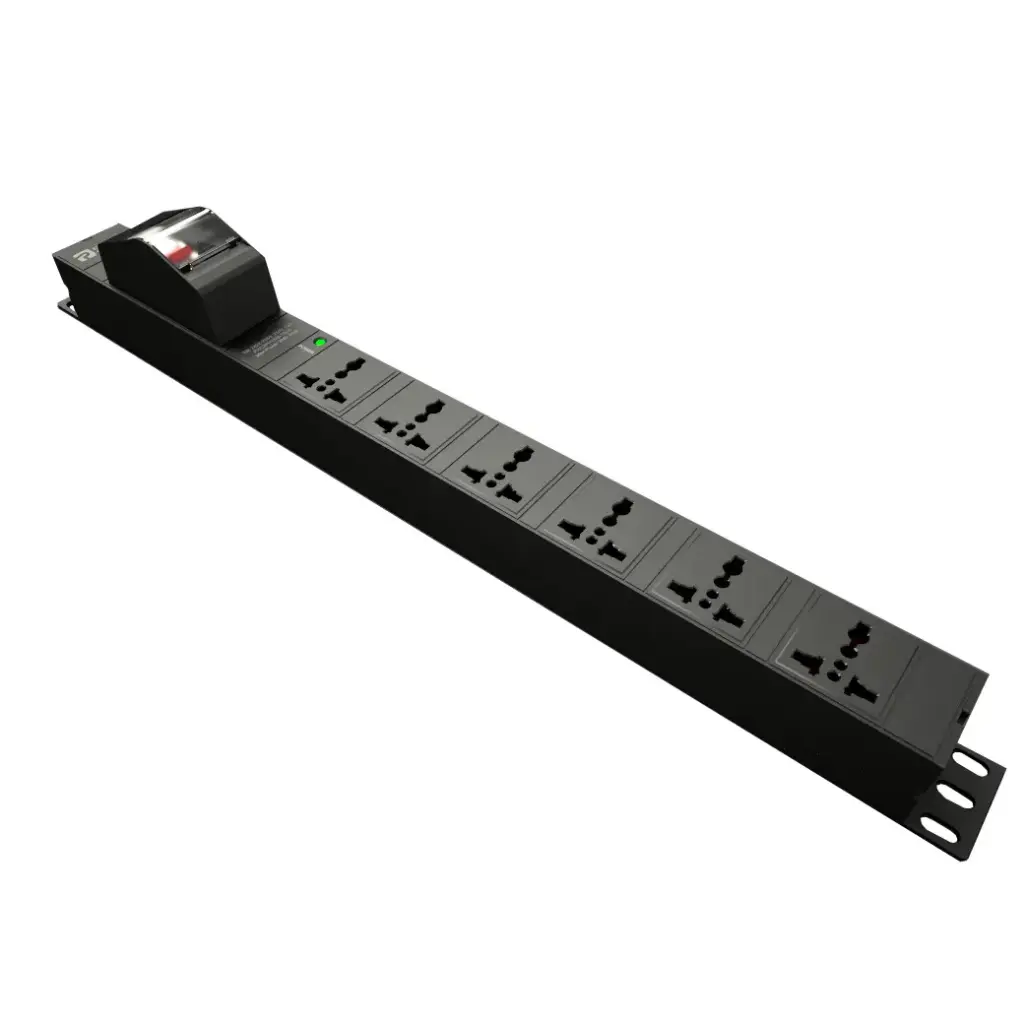

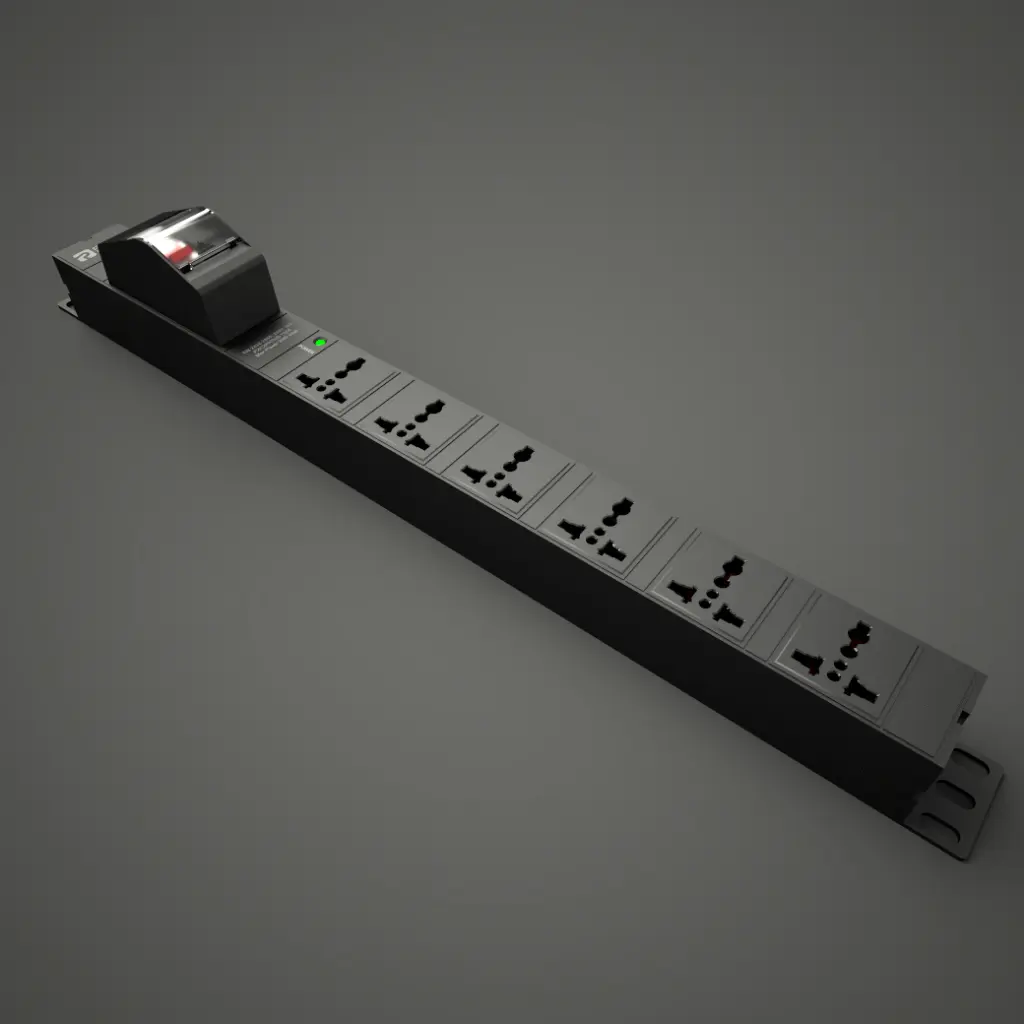

PowerConneX ปลั๊กพ่วงสำหรับตู้แร็ค 6 ช่อง (สายยาว 3 เมตร)(3,750W)(15A) รุ่น PXB5PHNNB-UL06
13 sold in last 24 hours
GB2099.3 (Universal) outlets, Master Circuit Breaker, LED
power indicator, NEMA 5-15P 15A Plug, Cable 3m with 1.33 sq.mm
Electrical
- Input connector 1 x NEMA 5-15P Plug
- Output connectors 6 x Universal Outlet 15A
- Nominal input voltage 200~250 VAC
- No. of phases 1
- Acceptable input voltage ± 10% of normal voltage
- Input frequency 50/60 Hz
- Max. Power 3,750 W
- Length of connection cable 3m
- No. of internal wires 3 (single-phase PDU)
- Cable cross-section 1.31 mm2 (16AWG)
Physical
- Power Input Left end single input
- Bracket Installation 2 ways interchangeable L mounting brackets
- Rack Installation Horizontal mounting
- Control Function Master Air Circuit Breaker 16A (Legrand) with plastic cover & Indicator
- Protection Function Master Air Circuit Breaker 16A (Legrand)
- Case Material Aluminum Alloy (Black)
- Outlets Material PC-ABS (Black)

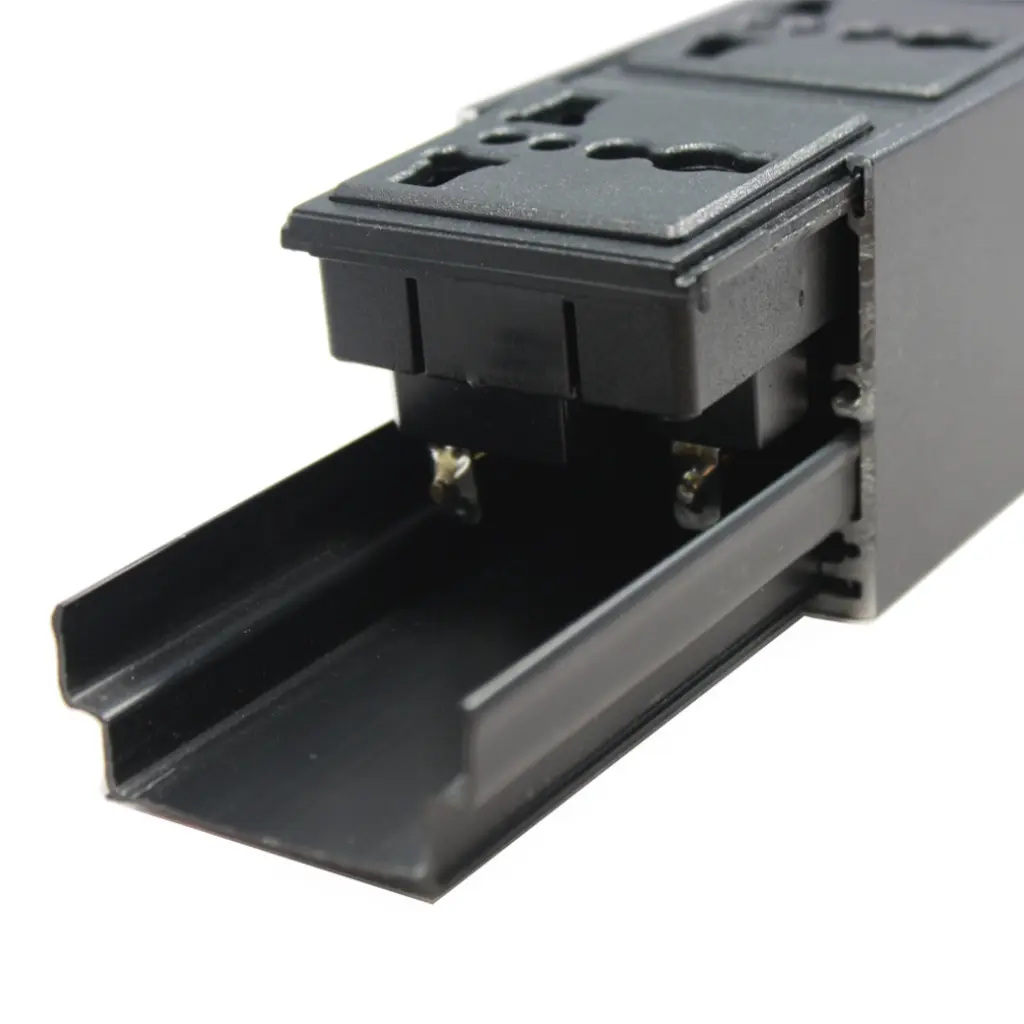

- Insulation Molded PVC insulation between sockets and case
- Circuit Wiring Material Industrial grade copper bar welded
- Product Size (L × W × D) 487.0 x 44.4 x 93.2 mm
- Shipping dimensions (L × W × D) 540.0 x 140.0 x 70.0 mm
- Weight 1.5 kg
Environmental
- Maximum elevation (above MSL) Operating 15,000 ft (4,500 m)
- Maximum elevation (above MSL) Storage 50,000 ft (15,000 m)
- Temperature Operating –5 to 50° C (23 to 122° F)
- Temperature Storage –25 to 80° C (–13 to 176° F)
- Humidity Operating 5 – 95% RH non-condensing
- Humidity Storage 5 – 95% RH non-condensing
Compliance
- Safety verification CE, LVD, EMC, FCC, EN 55032 : 2015, EN 55035 : 2017, EN 61000-2-11 : 2000
- EN 61000-3-12 : 2011
- Environment verification RoHS
- Factory verification ISO9001, ISO14001, ISO45001
| แบรนด์ | POWERCONNEX |
